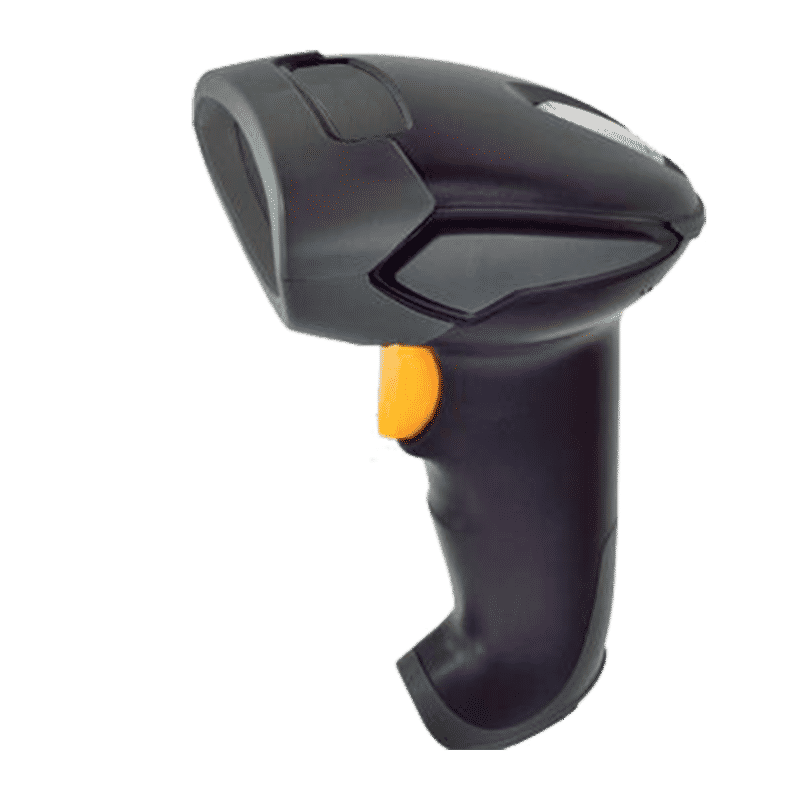

ZBSC-BT-421 BT Bluetooth Barcode Scanner
for use on Android PAD or Windows PC / Laptop
Bluetooth Barcode Scanner for use on Android PAD or Windows PC / Laptop
- 【Bluetooth 4.1 Barcode Scanner】Bluetooth 4.1 scanning, plug, and play, no need to install any software. Bluetooth Wireless scanning, password bypass direct connection, enable wireless again will auto-connect after being disconnected.
- 【Support 1D Code, 2D Code Scanning】Quick Barcode Scanning Speed. 2D barcode: PDF417, Micro PDF417, Data Matrix(Squarish), Maxicode, QR Code, Micro QR, Aztec, etc. 1D barcode: UPC, EAN, Code128, Code39, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc.
- 【High Compatibility】Windows, MAC OS by 2.4G wireless direct connect, Android, IOS directly connected to mobile phones, tablets, notebooks, and computers via wireless.
- 【Ergonomic Design】Exquisite ergonomic design, weighs 150g, comfortable grip, and long time operating without fatigue.
| ZBSC-BT-421 | ZBSC-N-421 | |
| Specification | Descriptions | |
| Communication | Blue tooth Class Ⅱ, Blue 4.0 | RF 2.4G |
| Memory | 2MB | |
| Main Battery | 2000 mAh, Li-ion Battery | |
| Keys | One Key | |
| Indicator | Beep and LED | |
| Interfaces | SPP & HID Interface (Compatible Android, iOS, Windows Mobile) | |
| Battery Charge Time | Approx. 4-5 hours per full charge | |
| Scan per full charge | 30,000 scans | 60,000 scans |
| Scan Speed | 270 Scans/sec. | |
| Light Source | RED LED (660nm) | |
| Resolution | 0.075mm (3mil} | |
| PCS value | 30% or more | |
| Scan Angle | 45° | |
| Scan Width | Up to 250mm or more (PCS90%) | |
| Scan Distance (PCS 90% code 39) | 20-600mm (PCS 90%) | |
| Decodable Capability | Code 39. Full ASCⅡ Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSl/PLESSY, Italian Pharmacy Code, Telepen. RSS-14, RSS Limited, RSS Expanded | |
| Electrical | ||
| Voltage | 5V DC ±5% | |
| Operation Current | 100-120mA | |
| Stand-by Current | 20-30mA | |
| Environment | ||
| Operating Temperature | 32°F to 105°F (O°C to 50°C) | |
| Storage Temperature | -15°F to +140°F (-26°C to 60°C) | |
| Humidity | 10% to 90% RH | |
| Drop | Approved by 1.5M drop test on concrete | |
| Ambient Light Rejection | 6000 Lux max. (Fluorescence) | |
| Safety Approval | CE & RoHS | |
| Physical | ||
| Case Material | ABS + Rubber | |
| Dimension | L:166mm W:66mm H:86mm | |
| Weight | 150g | |
| Standard package | 1.Main unit 2.Micro USB cable 3.Quick Guide manual | |
