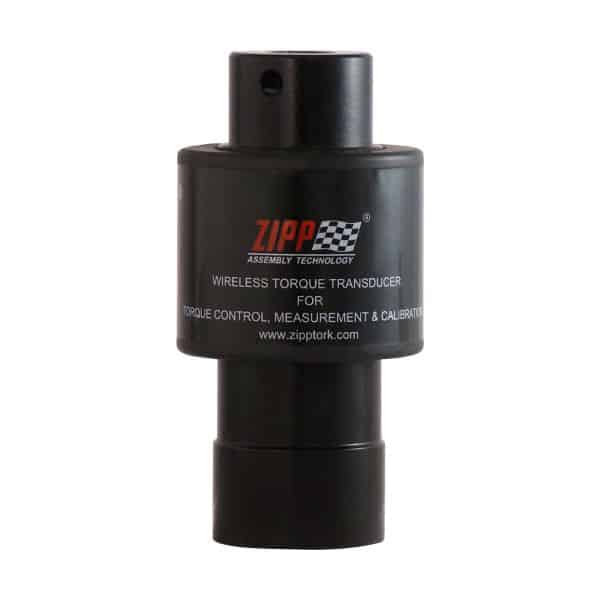

TTAH Wireless Torque Transducer
- The only wireless Torque Transducer applicable to impact or oil pulse torque tool for dynamic bolting.
- Designed with unique patent pending anti-vibration mechanism for dynamic bolting torque control under violent impacts.
- Standard Packaging: Torque Transducer, Charging Cable & Magnet Switch.
- Optional Accessories:
1. Dongle for Android Pad or Window PC/Laptop.
2. Transducer Protection Cover.
|IO(1)||USB Type-C *1|
|IO(2) Wireless||RF 2.4G up-to 20M|
|Zero Balance||<±0.5% FSD/°C|
|Static Accuracy||±1% FSD|
|Charging time||5% to 100%, 2 hours|
P/N: DG-CP for Android
P/N: DG-WIN for Window
P/N: TPC-100 for 20/50/100Nm
P/N: TPC-250 for 180/250Nm
P/N: TPC-500 for 500/750Nm
P/N: TPC-2000 for 1000/1500/2000Nm
Software and Functions
- Applicable to:
Oil Pulse Wrench, Impact Wrench, Geared Wrench, Torque Wrench, Clutch Type, Torque Tool & Click Wrench.
- Measurement: Torque, Angular Movement & Pulse Count.
- RF Working Frequency: 60 channels available to be paired with TCA/TCB.
- Functions Check: Automatic check the status of power rate, signal quality, torque & angle, etc. when turned on.
- Switch: Use magnet to turn on.
- LED Light:
Blue/Orange twin color:
Orange last long~Low Power, Blue last long~RF in communication, Blue twinkling~pairing with Controller, Orange
Red/Green twin color: Red~In Charging, Green~Full Charge.
Minimum system requirements:
|Operating system||Windows 10||Android 7.0 or above|
|Minimum CPU||Core i3||Quad core|
|Minimum system memory (RAM)||4G||3G|
|Minimum free storage space:||32GB||32GB|
- Torque Controller – 12 months from purchase date.
Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty does not cover part failure due to broken / missing seal label, misuse, modification, negligence, abuse or normal wear and tear.
- Transducer –
TTE(H) series: 12 months from purchase date or 200,000 cycles.
TTA(H) & TTEB series: 12 months from purchase date or 500,000 cycles.
Battery: 3 months from purchase date.
Signal acquisition board: 12 months from purchase date.
Manufacturer will repair or replace, any defects due to faulty materials or workmanship. This Warranty does not cover part failure due to over torque, using TTA(H) series on impact tools or cordless tools, broken /missing seal label, misuse,
modification, negligence, abuse or normal wear and tear.
- Dongle – 12 months from purchase date.
|ITEM NO.||Torque Range
|Inlet Size||Outlet Size||Profile Dimension
O.D. X Length (mm)
This series of Transducer can be custom made with specific size of hexagonal opening for correspondent size of bolt or nut.
|Power||DC 3.7V / 650 mAh||DC 3.7V / 650 mAh|
|Measured Range||10% Tnom~100% Tnom||10% Tnom~100% Tnom|
|Torque Resolution (Nm)||0.1% Tnom||0.1% Tnom|
|Static Measured Angle Range||0°~360°||0°~360°|
|Angle Resolution (Degree)||0.5°||0.5°|
|Maximum Torque (Nm)||100% Tnom||100% Tnom|
|Wireless communication||RF 2.4GHz|
|Charger||USB ( 5V/1A )|
|Operation Temperature (°C)||0°C~50°C|
|Storage Temperature (°C)||-10°C~60°C|
